VTB V9600 Controller for Talaria All Stings — Red V1.9 (Gen 2)

Take your bike to a whole new level with the VTB V9600 controller for Talaria All Stings in Red V1.9 — the latest Generation 2 release of one of the most sought-after aftermarket controllers on the UK Sur-Ron and Talaria scene. Built to deliver factory-grade refinement at a real-world price, this VTB controller transforms throttle response, top-end power, regen feel and rider customisation in a single, neatly integrated upgrade.

At its core, the V9600 V1.9 is a high-performance Sinusoidal Vector Control unit pushing up to 500A continuous / 960A peak phase current and a peak power output of 44kW. That headroom unlocks genuinely different bike behaviour — sharper off-the-line acceleration, stronger mid-range pull and confident high-speed reactive compensation when you’re hard on the throttle. A high-reliability redundant design and CNC-machined heatsink keep things cool and predictable, even under sustained heavy use, with an operating range of -25°C to 80°C and a full IP67 waterproof rating ready for British weather.

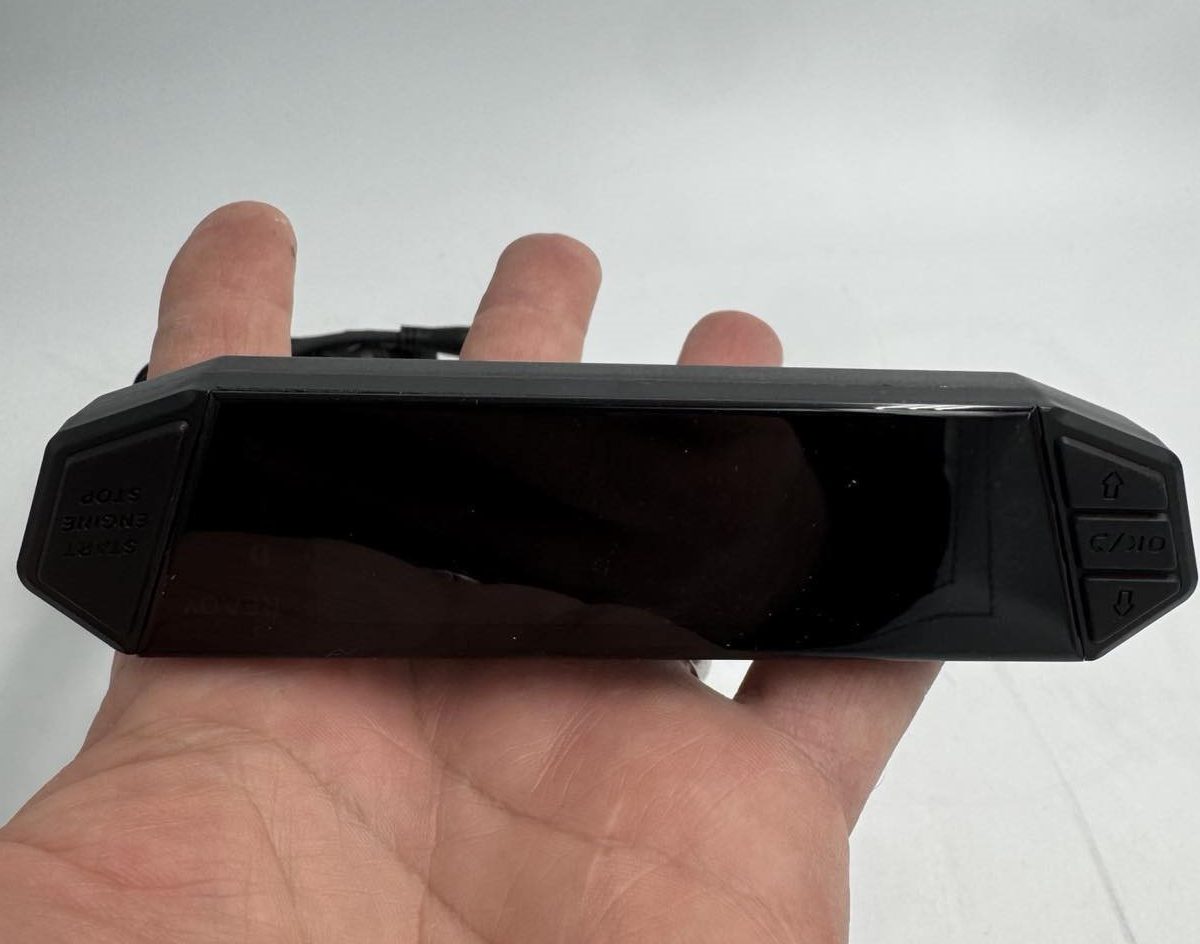

What really sets the V9600 V1.9 Red apart, though, is rider control. The upgraded high-resolution colour dashboard pairs over Bluetooth with the included controller and your bike’s BMS, with the free VTB app for iOS and Android giving you full access to:

• 3 power modes and 5 riding modes, switchable on the fly
• 5 regenerative braking modes, from feather-light to full engine-brake feel
• Custom throttle curves, burst acceleration and high-speed reactive compensation
• Adaptive feedback compensation that holds throttle feel together as the pack drains
• Sensory unlock and Bluetooth auto-connect for a clean, key-free start-up

The V1.9 revision adds an upgraded display and a redesigned wiring loom that incorporates the original throttle, making installation cleaner and significantly less fiddly than earlier versions.

VTB V9600 controller Compatible Bikes

This listing is the Talaria-specific loom version of the V9600. It is engineered as a plug-and-play upgrade for the full Talaria Sting line-up, including:

• Talaria Sting (TL3000 / TL45)
• Talaria Sting R (TL4000)
• Talaria Sting R Road Legal (TL50 / L1e)
• Talaria Sting MX3
• Talaria Sting MX4 / Sting R MX4
• Talaria XXX

The VTB V9600 controller also widely cross-used by Sur-Ron Light Bee and Ultra Bee riders running the correct bike-specific loom (this listing ships with the Talaria adapter cable only — Sur-Ron riders should select the Light Bee / Ultra Bee version).

VTB V9600 controller Compatible Motors

• VTB Beast 28kW
• VTB Beast 35kW
• Sur-Ron Light Bee Factory
• Sur-Ron Ultra Bee Factory
• Talaria Sting Factory
• 79bike Falcon Factory
• QS165
• LTXS
• Sotion FW01
• Sotion Talaria

Compatible Batteries

16–22S NCM packs, compatible with original Talaria and Sur-Ron batteries plus most modified aftermarket builds. Operating voltage 48V–84V (30V–99V limit), so the controller comfortably handles 60V, 72V and 84V upgrade packs.

Key Specifications

• Max phase current: 500A / 960A peak
• Peak power: 44kW
• Controller type: Sinusoidal Vector Control
• Voltage range: 30V–99V (limit), 48V–84V (working)
• Battery series: 16–22S (NCM)
• Operating temperature: -25°C to 80°C
• Waterproof rating: IP67
• Weight: 4kg
• Dimensions: 35 × 20 × 20cm

What’s in the Box

• VTB V9600 Red V1.9 Controller
• High-resolution Colour Screen Dashboard
• Dashboard Bracket
• Switch Assembly
• Thumb Brake
• Talaria-Specific Adapter Cable

Why Buy From Us

• UK stock with next-day delivery on orders placed before 12pm
• Free fast UK shipping
• Set-up support included — we’ll help you dial it in
• Full UK warranty

Important Notes

• This listing is the Talaria loom version. You must order the controller that matches your bike’s harness.
• Do not upgrade the controller firmware after installation — doing so may invalidate your warranty.
• Bike not included.

Ready to extract every last kilowatt from your Sting? Add the VTB V9600 Red V1.9 to your basket and ride sharper, smarter and faster on your next trail day.

Q: Will this VTB V9600 fit my Talaria Sting R MX4? A: Yes — this Red V1.9 controller is the Talaria-loom version and fits all Talaria Sting variants, including Sting, Sting R, MX3, MX4 and XXX.

Q: How much power does the V9600 V1.9 deliver? A: Up to 44kW peak with 500A continuous / 960A peak phase current, with a working voltage range of 48V–84V.

Q: Can I use my original Talaria throttle? A: Yes — the V1.9 revision uses an upgraded loom that incorporates the original throttle for a cleaner install.

Q: Is the controller waterproof? A: The full system is rated IP67, making it suitable for wet UK trail conditions.

Q: Do I need to flash the firmware? A: No. Please do not upgrade the firmware after installation — doing so may invalidate the warranty.

Q: Does it support 72V battery upgrades? A: Yes. The controller supports 16–22S packs and is compatible with most aftermarket 60V, 72V and 84V battery upgrades.
